 REVERSE OSMOSIS SYSTEM

This is usual condition we can see around daily living when installing semi-permeable membrane the solution moves and this is called osmosis condition. Membrane type water treatment device is the one that as cutting-edge technology of scientific method guiding solution¡¯s flow reverse direction through specially made semi-permeable membrane(Membrane) while adding high pressure surpassing osmosis pressure.

Produce purified water for drinking and living water from high chlorine water.

Fresh water making facility from sea water.

For pre-treatment of electronic, semiconductor, pharmaceutical stilled water, and ultra-pure water device.

Producing industrial use water including power cogeneration, high-pressure boiler water

Separation and purifying facility of food industry, soft drink, and enzyme.

Living sewage, polluted water recovering device and field of waste water facility

MODEL

  Feed(§©/hr)

 Capa(§©/day)

Total Head

 Membrane

 Vessel Unit

CSW-5RO

8(75%)

120

40mHx100mH

8040 6EA

8x3x2(1:1)

CSW-10RO

15(75%)

240

40mHx100mH

8040 12EA

8x4x3(2:1)

CSW-15RO

22(75%)

360

40mHx110mH

8040 18EA

8x6x3(2:1)

CSW-20RO

29(78%)

480

40mHx110mH

8040 24EA

8x6x4(2:1:1)

CSW-25RO

35(78%)

600

45mHx110mH

8040 30EA

8x5x6(3:2:1)

CSW-30RO

43(78%)

720

45mHx110mH

8040 36EA

8x6x6(3:2:1)

CSW-40RO

56(80%)

960

45mHx110mH

8040 48EA

 8x6x8(4:3:1)

CSW-50RO

68(80%)

1200

50mHx120mH

8040 60EA

8x6x10(5:3:2)

CSW-60RO

80(83%)

1440

50mHx120mH

8040 72EA

8x6x12(7:3:2)

CSW-80RO

105(85%)

1920

50mHx120mH

8040 96EA

8x6x16(9:5:2)

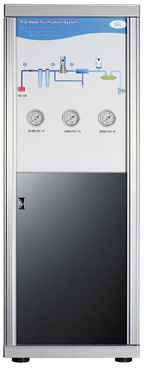

 STANDARD RO UNIT

Able to use without shortage in large establishment, dining hall, school, dormitory

Done with pre-treatment filter of screw form able to simply exchange filter, and can recognize the condition of filter with one look from pressure meter attached in front.

Minimized product¡¯s noise developing low noise high-pressure pump, and reduced power using amount having control circuit by inverter within.

The device possible to operate with unmanned driving without additional maneuvering because it operate and stop with information delivered from sensor inside upon switch on.

Possible to use safe removing impurities, heavy metal, radioactive and even to chemical material harmful to human because of using 0.0001 micron.

Out of facility concept of establishment¡¯s water purifying system we designed it from professional design company, so you can feel high quality home appliance with beautiful design and fresh external appearance.

We retain superior cost competitive power comparing with other company¡¯s product which operating cost reduction through continuous research development and outsourcing.

MODEL

Capa(§©/day)

 PE Filter

AC Filter

 Membrane

Feed Pump

Size(WxDxH)

CSW-1241S

6

20"x2EA

20"x2EA

4040 1EA

220V 750W

54x45x150

CSW-2200

6

20"x3EA

20"x3EA

4040 1EA

220V 750W

60x60x160

CSW-4400

12

20"x3EA

20"x3EA

4040 2EA

220V 750W

60x60x160

CSW-6600

18

20"x4EA

20"x4EA

4040 3EA

220V 1500W

60x60x160

CSW-8800

24

20"x4EA

20"x4EA

4040 4EA

220V 2200W

60x75x160

CSW-11000

30

20"x4EA

20"x4EA

4040 5EA

220V 2200W

60x75x160

CSW-13200

36

20"x4EA

20"x4EA

4040 6EA

220V 2200W

75x75x160
